RSO04

FTP Fringe Test
Selected results from the JIVE SFXC software correlator

14 June 2025

Mode:
5 cm, 128 Mbps, 8 BBC channels, 4 MHz filters, 2-bit sampling.

Participating antennas:
Jodrell Mk2 (Jb), Irbene 16m (Ib), Sardinia (Sr).

With 2 s integration times on J2202+4216.

Notes:
-- Main goal is to test the Sardinia M-band receiver with scans on J2202+4216 and W3(OH).
-- This is also a short observation request to map the currently flaring maser in G85.410+0.003.
-- Sardinia has nice fringes. The problem before was a faulty cable.
-- Irbene has no fringes. Restarted dbbc2 and synced-up multiple times, but couldn't figure out the issue. To be investigated further.
-- Maser scan auto-correlations for Sardinia (30s integrations): all detected. Middle peak (out of three) in G85 is the new flare.

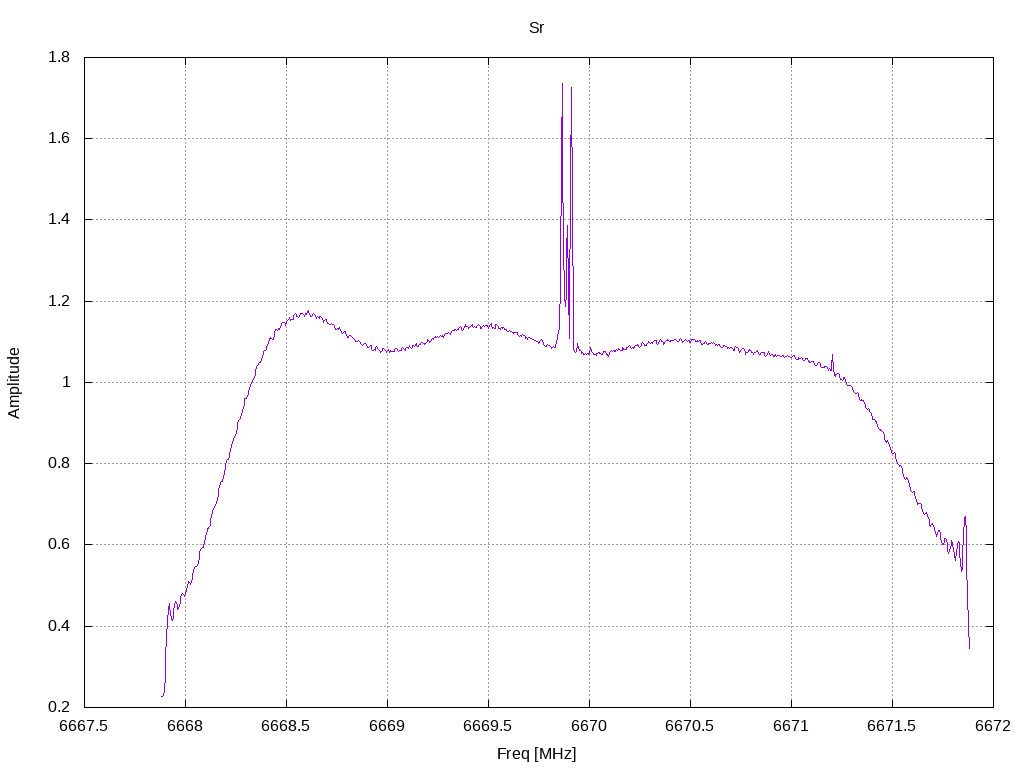

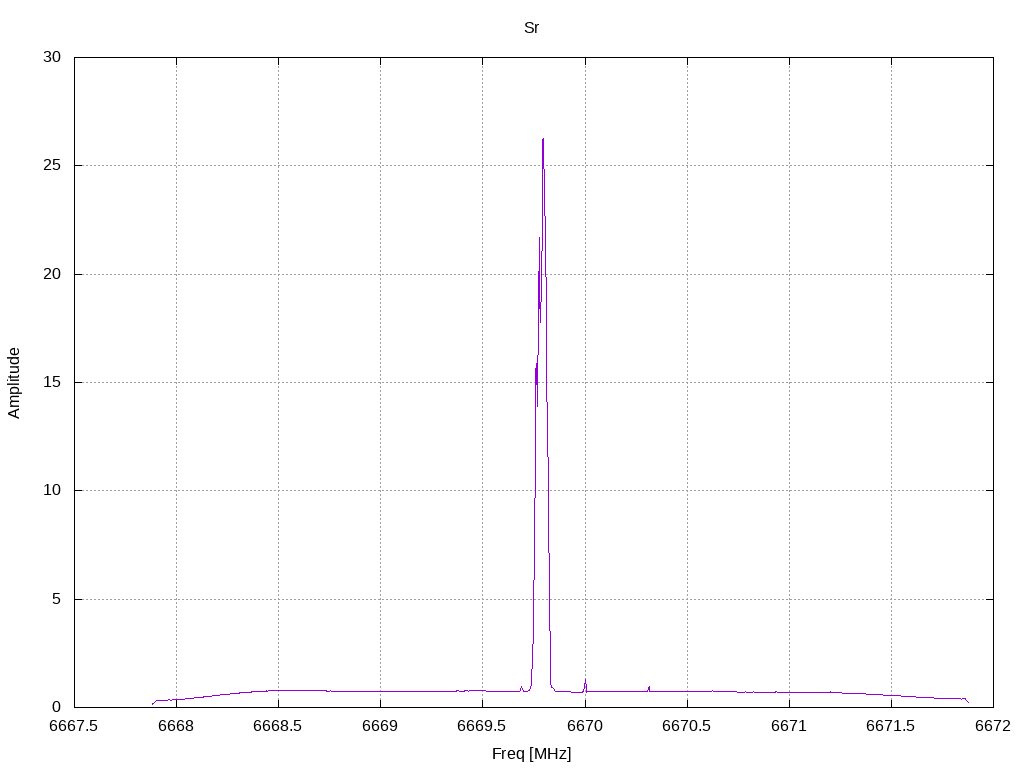

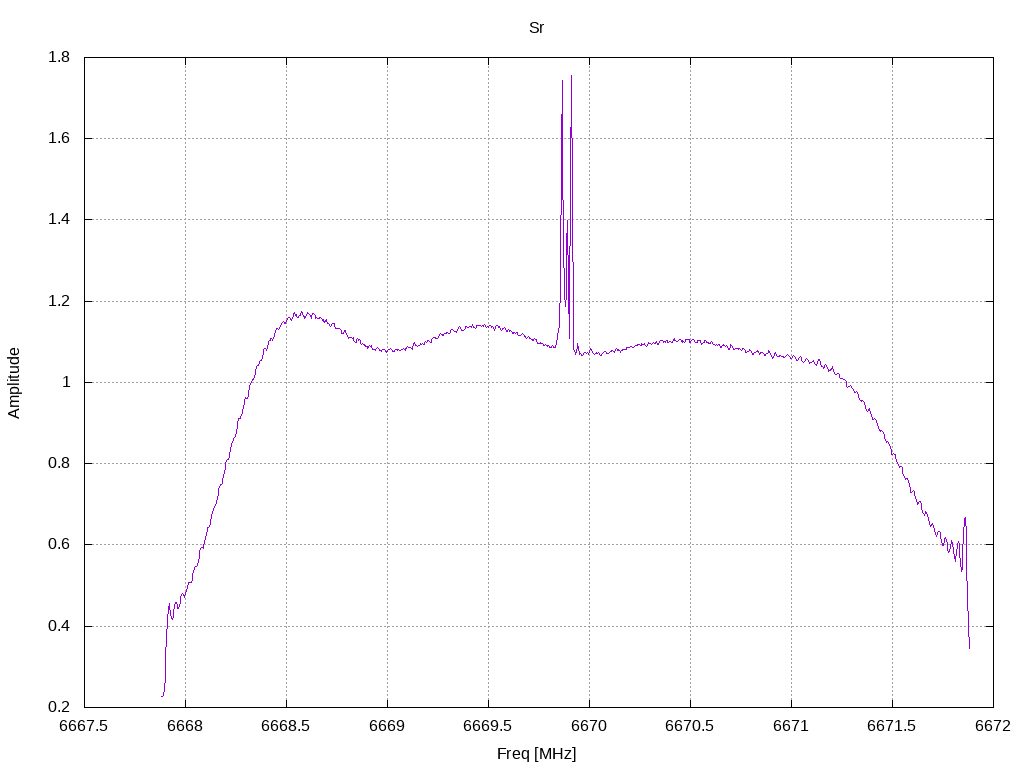

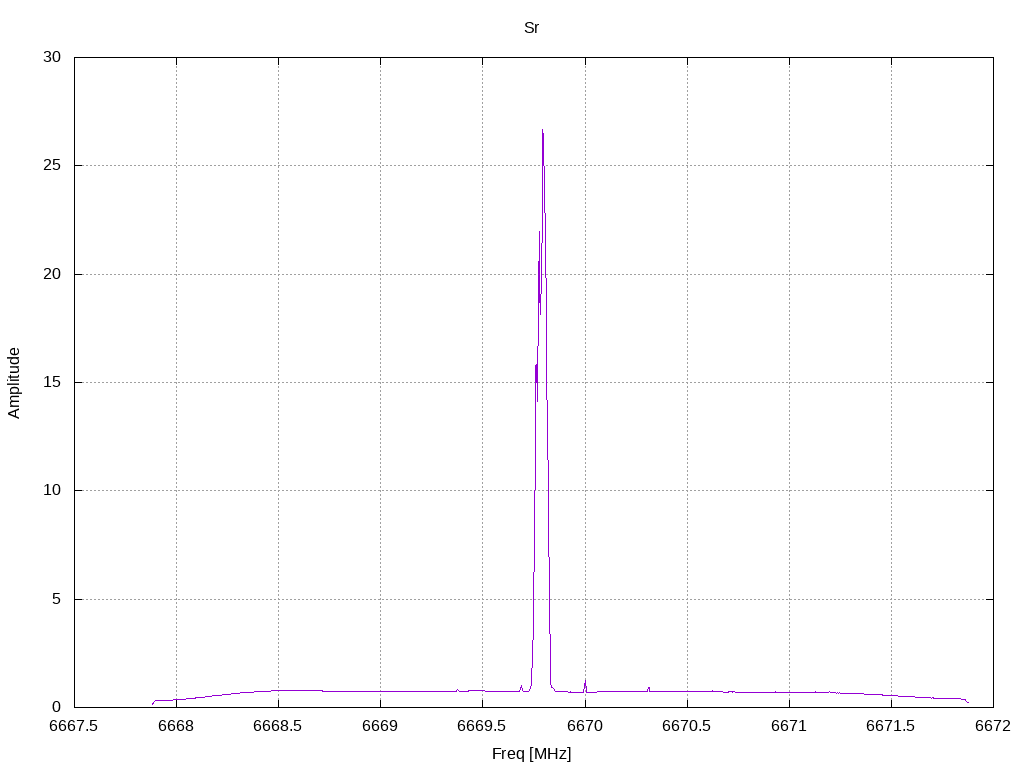

W3OH -- scan 03: RCP / LCP , scan 14: RCP / LCP

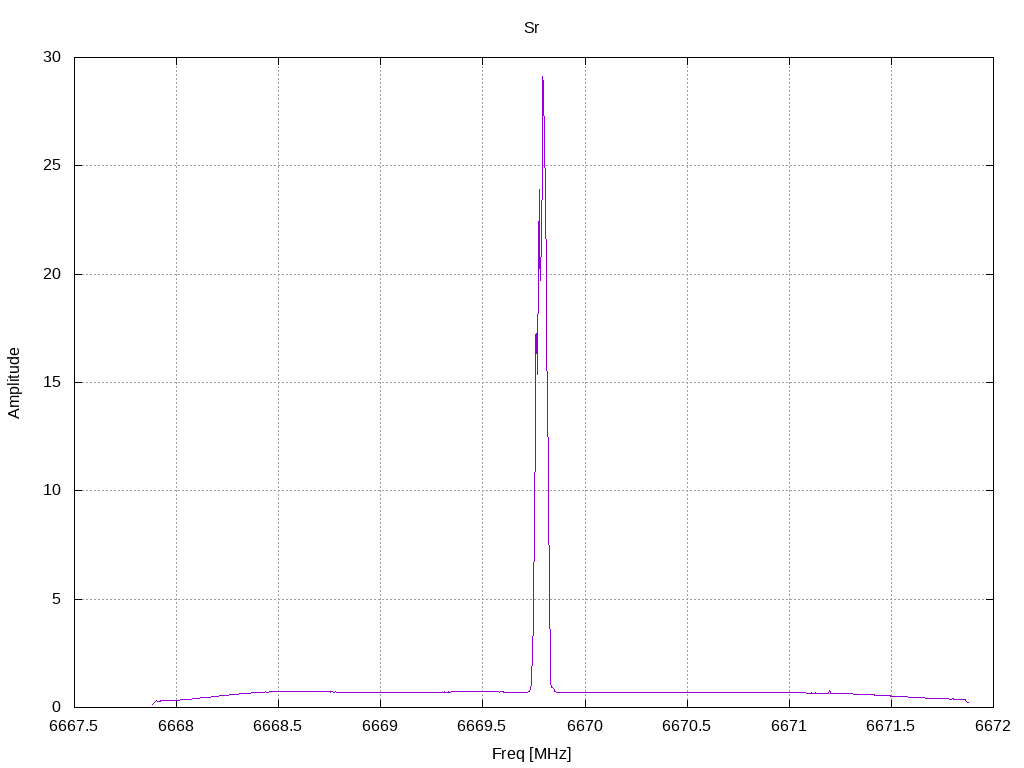

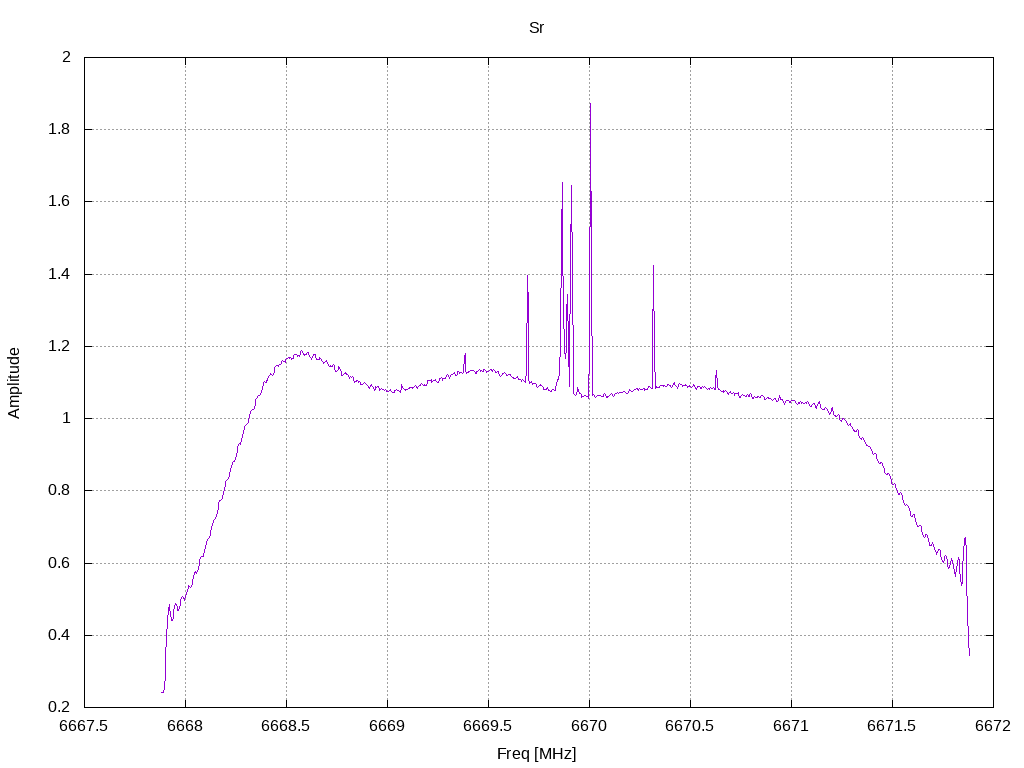

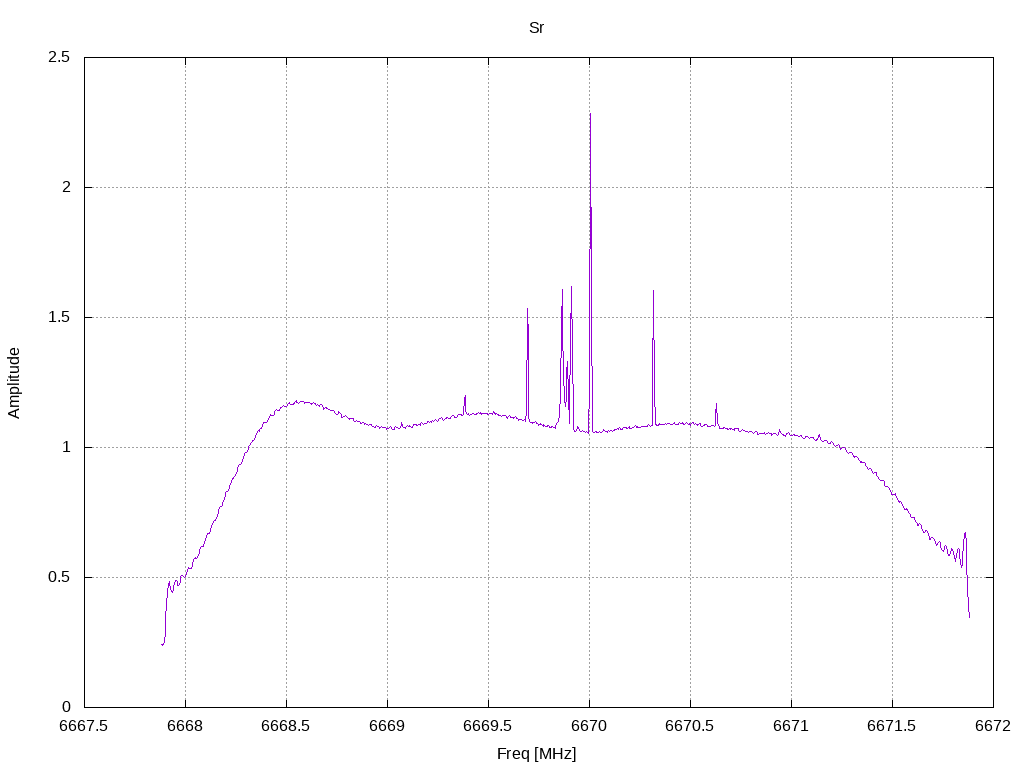

G85.41 -- scan 04: RCP / LCP , scan 10: RCP / LCP


scan02
2 s integration, J2202+4216, 08:04 UTC

Auto-correlation plots
Cross-correlation plots

scan08
2 s integration, J2202+4216, 08:35 UTC

Auto-correlation plots
Cross-correlation plots

scan13
2 s integration, J2202+4216, 08:53 UTC

Auto-correlation plots
Cross-correlation plots
